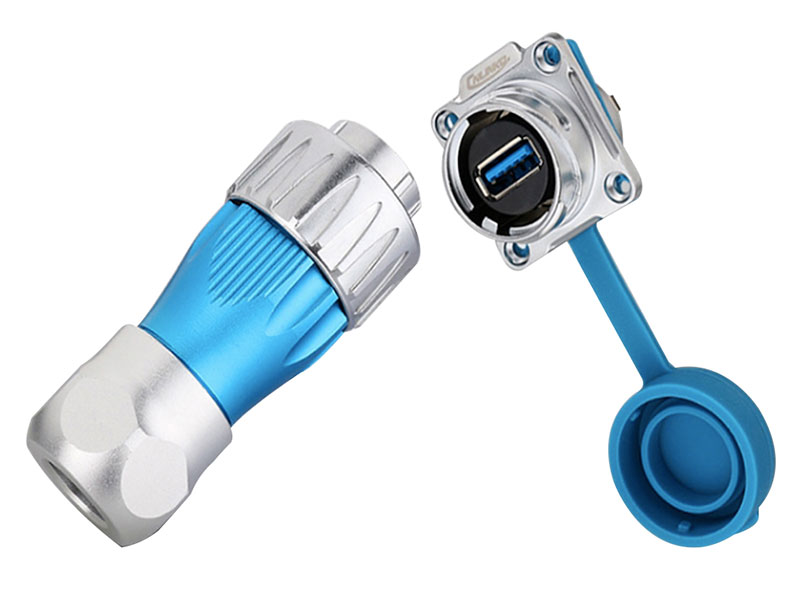

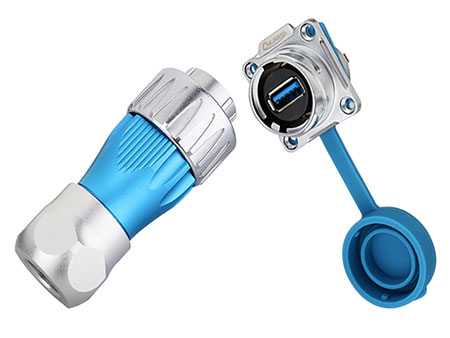

USB Connector for Ceiling Service Panel

USB Connector for Ceiling Service Panel
USB Connector for Ceiling Service Panel

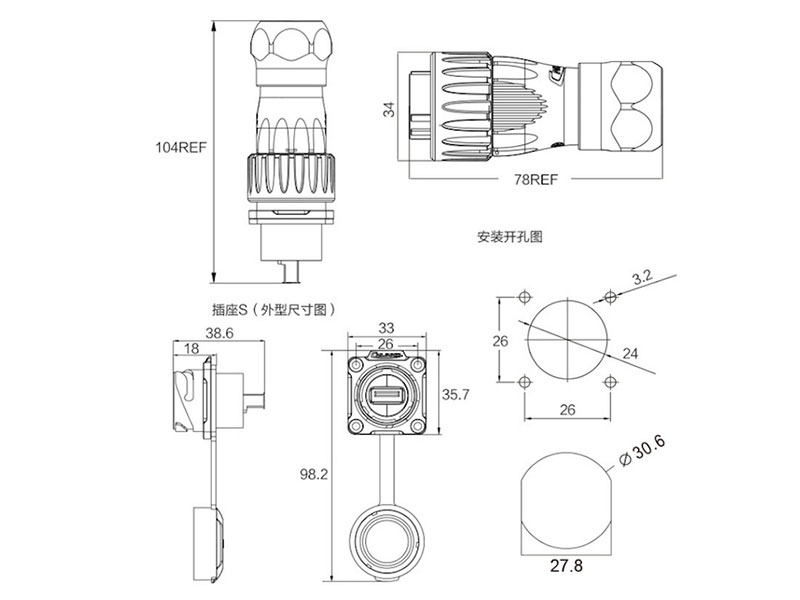

    1. Model
    2. DH24-USB3.0

  • Parameters

    Cable Specification: 0.15mm²~0.2mm²/26-24AWGCable Diameter: φ5.5mm~ φ7mm
    9 PINRated Current: 1.5A
    Operating Voltage: 500VContact Resistance: <30mΩ
    Temperature Rise: /Insulation Resistance: >500MΩ
    IP Rating: IP67Durability: ≥500 mating & unmating cycles
    Operating Temperature: -40oC~80oCConnecting Mode: 1/4 fast locking connecting
    Way of Connecting Cable: SolderWithstand Voltage (AC. V): 2500V
    Material
    Insulated parts: High performance engineering plasticsHardware metal: Zinc alloy
    Sealing: Silica gel Pin: Copper alloy (gold-plated)Prevent the Combustion Level: UL94-V0
    1. Application
    2. Installed on the ceiling service panel
